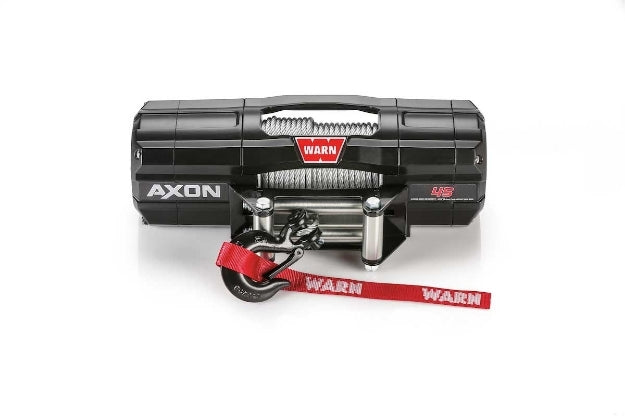

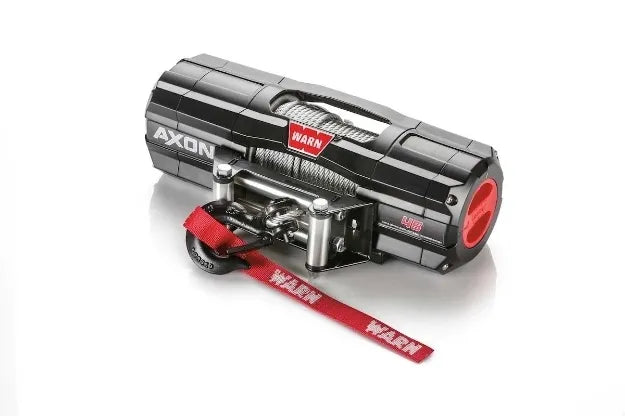

WARN AXON 45 Powersports Winch - 4,500 lb Capacity
The WARN AXON 45 is a 4,500 lb powersports winch built for real recovery situations. Originally designed for UTVs and Side-by-Sides, it's the right size for Subaru crossovers running the WARN semi-hidden winch mount. Waterproof, all-metal construction, and digital controls that show you load and motor temperature in real time.

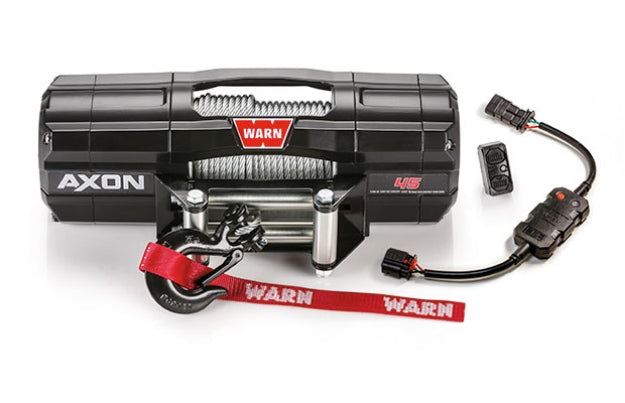

What's Included
- WARN AXON 45 winch (4,500 lb capacity)
- 50 ft x 1/4" steel wire rope
- Roller fairlead
- Black hook
- Dash-mounted rockerbar control switch
- Digital corded remote (10 ft cord)
Works With These Vehicles
- 2020-2022 Subaru Outback (with WARN 106396 winch mount)
- 2018-2020 Subaru Crosstrek (with WARN semi-hidden mount)
- 2019+ Subaru Forester (with WARN semi-hidden mount)
- ATVs, UTVs, and Side-by-Sides with compatible mounting
Why the AXON 45?
Most Subaru owners don't need an 8,000 lb truck winch. The AXON 45 gives you enough pulling power to self-recover from mud, sand, or a ditch without adding unnecessary weight to your front end. The 4,500 lb capacity handles a stuck crossover without breaking a sweat, and the compact size fits behind your bumper in WARN's semi-hidden mount systems.
Features
- 4,500 lb pulling capacity
- Motactor technology combines motor and contactor for faster installation and better performance
- Digital controls display load weight and motor temperature
- Built-in load limiter prevents damage from overloading
- IP68 waterproof rating keeps mud and water out
- All-metal three-stage planetary gear train
- Load-holding mechanical brake for controlled lowering
- Clutch design based on WARN's 4WD hub lock technology
- Black powder coat finish with stainless steel fasteners
Installation

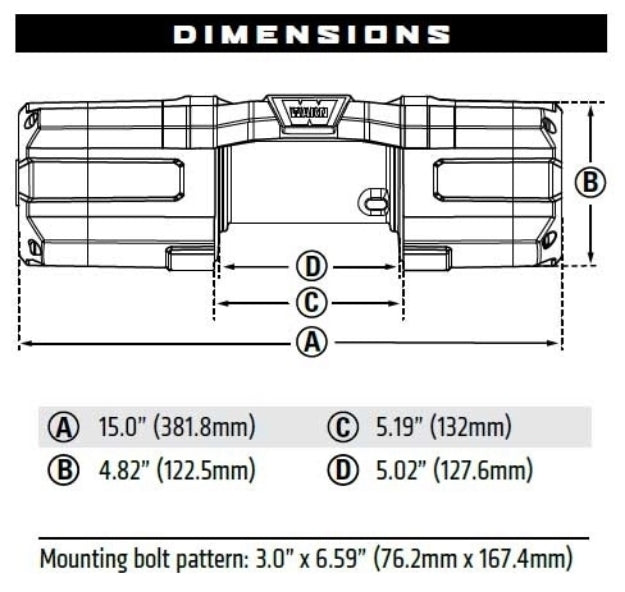

Requires a compatible winch mount with 3.0" x 6.59" bolt pattern (76.2mm x 167.4mm). For Subaru applications, use the WARN semi-hidden winch mount for your specific vehicle. Wiring runs to your battery with included switch and remote. Plan for a few hours if you're installing both the mount and winch together.

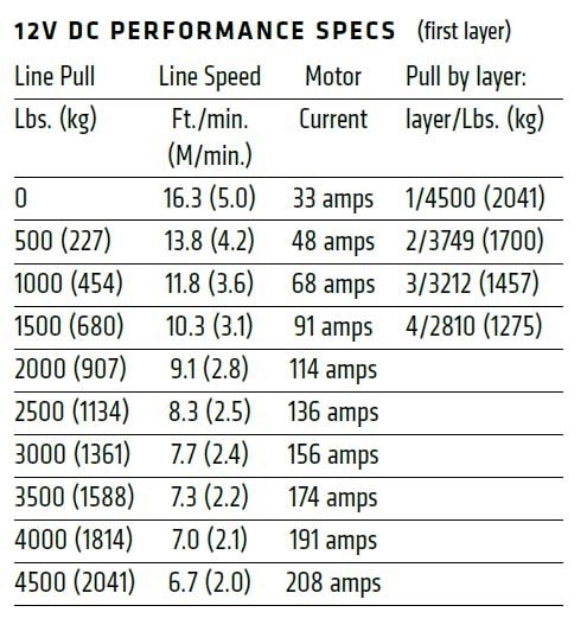

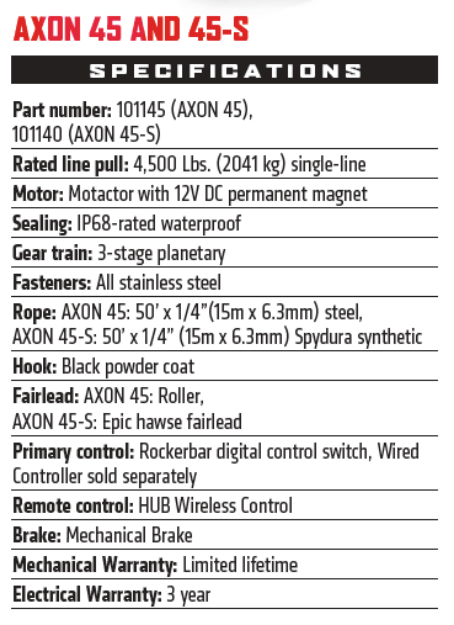

Specs
- Capacity: 4,500 lbs (single line)
- Motor: 1.75 hp
- Rope: 50 ft x 1/4" steel wire
- Line speed (first layer): 13.8 fpm
- Gear ratio: 235:1
- Gear type: 3-stage planetary
- Operating voltage: 12V DC
- Max current draw: 208 amps
- Waterproof rating: IP68
- Mounting bolt pattern: 3.0" x 6.59"
- Warranty: 3-year electrical, limited lifetime mechanical
- Part Number: WARN 101145
Related Products
- WARN Semi-Hidden Winch Mount for 2020-2022 Outback (106396)
- WARN Grille Guard Tube for Outback (106398)
- D-ring shackles for recovery points
Questions about winch fitment for your Subaru? Contact us.
